Built-in tilt technology
Safety combined with rider control
Leans into the turns
Perfect for kids and small companions
Glossy white, matte black or zebra
Couldn't load pickup availability
In stock - expected delivery: Søn, Nov 02
Description
Description

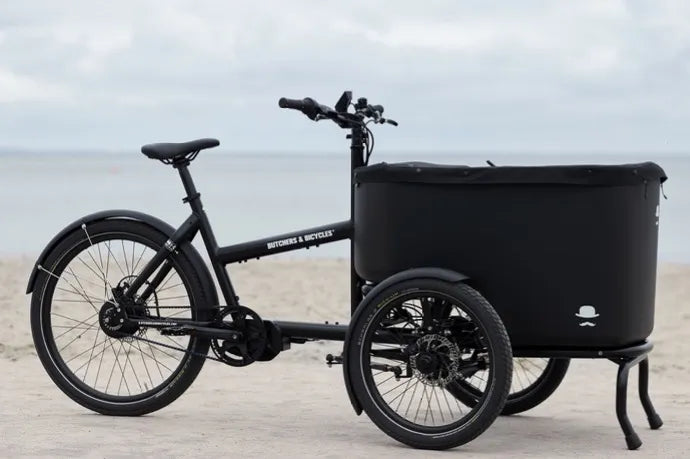

MK1-E Gen. 3 – Powerful Cargo eBike with Bosch Performance Line CX
Discover the next level of cargo bike performance and comfort with the MK1-E Gen. 3. Built for strength, safety, and everyday usability, this model combines cutting-edge technology with practical design. Equipped with the Bosch Performance Line CX Gen4 motor delivering up to 85 Nm of torque, it ensures powerful, smooth acceleration — ideal for both urban rides and longer trips.
The low-maintenance Gates Carbon Drive paired with the Enviolo Heavy Duty hub gear provides a quiet, grease-free, and durable drivetrain that’s designed to handle heavy loads with ease. Schwalbe Cargo tires offer exceptional puncture resistance, stable handling, and outstanding grip to keep you rolling no matter the conditions.
With the Bosch Kiox display, you have full control at your fingertips. Connect your smartphone via Bluetooth, plan routes with the Bosch eBike Connect app, and analyze ride data to improve your performance.
Safety comes first with Lezyne front lights and a Trelock rear light featuring automatic brake-light functionality, ensuring visibility and confidence in traffic. The ABUS XPlus one-key system secures both frame and battery.
With a load capacity of up to 100 kg in the cargo box and a maximum system weight of 250 kg, the MK1-E Gen. 3 is built for families, businesses, and anyone who needs reliable everyday transport — without compromising comfort or style.
Specifications
Specifications
Technical specifications
Total weight
50 kg (depending on model and accessories)
Load Limits
Total weight allowed: 250 kg.
Max. load in the box: 100 kg.
Max. rider weight: 100 kg.
Motor Unit
Bosch Performance Line CX Gen4, 250 W (max. torque: 85 Nm)
Speed Limits
25 km/h (Europe), 20mpH (USA)
Battery
500 Wh Bosch or 1000Wh Bosch (2x 500Wh) dual battery option.
Display
Bosch Kiox Display
Drivetrain
Enviolo HEAVY DUTY + Gates CDX
Bike Dimensions
Length: 217 cm
Width: 91 cm
Height: 106 cm
Brakes
Front: Hydraulic disc brakes, Ø180 mm, parking brake, left lever
Rear: Hydraulic disc brakes, Ø180 mm, right lever
Box Dimensions
Length: 98cm
Width: 62cm
Height: 54cm
Volume: 220L
Locks
ABUS XPlus with one key system: ABUS Shield frame lock + Bosch battery lock
Box Materials
ABS (body) og PC (door)
Frame
Material: Aluminium
Frame size: One size (rider height between 155 – 205 cm)
Seat height: 84 cm to 109 cm
Handlebar height: 105 cm to 111 cm
Tires
Front: 20″ x 2.35
Rear: 26″ x 2.35
Rims
Double-wall rims
Lights
Front: 2x Lezyne Power E115
Rear: 1x Trelock L424

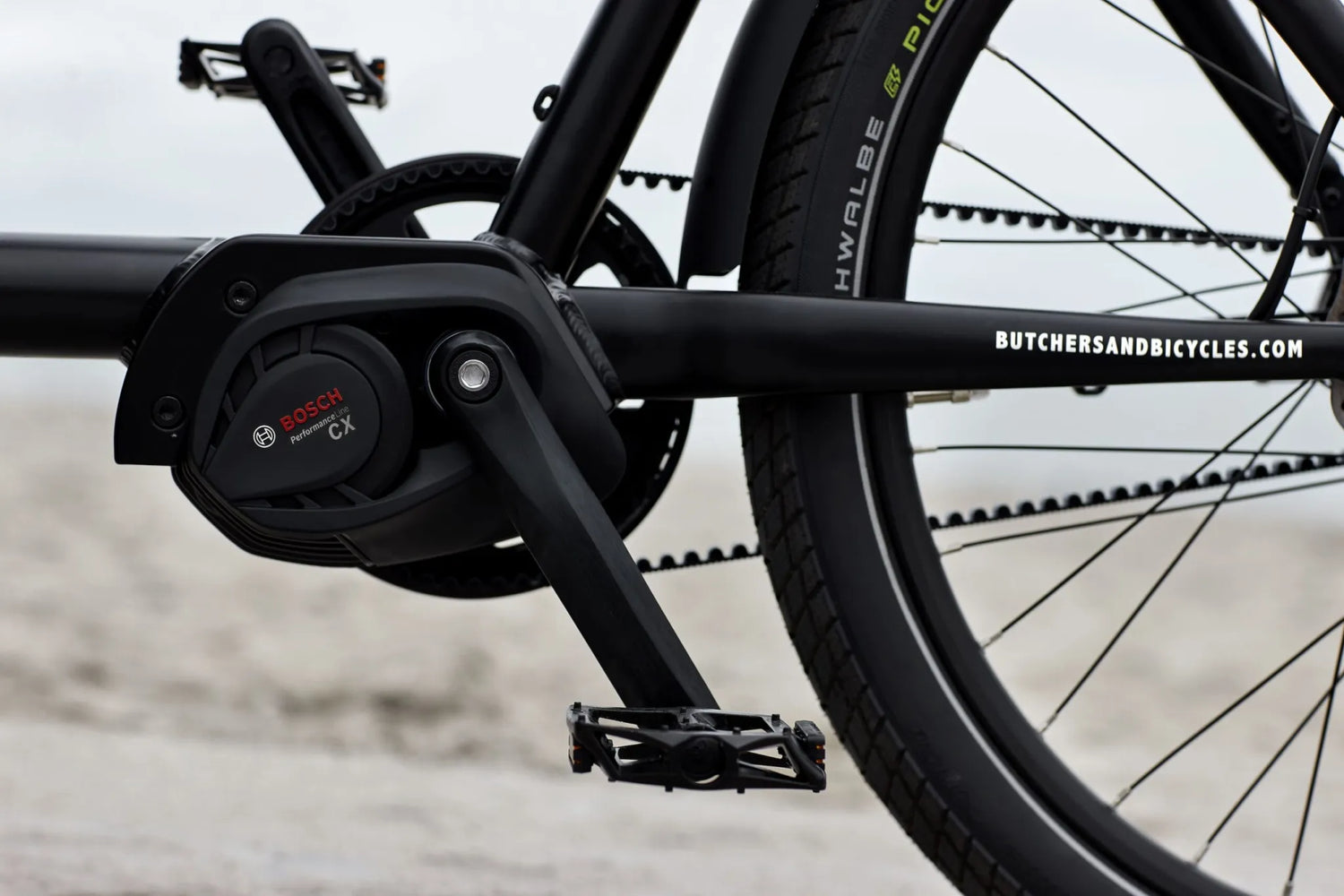

Bosch Drive Unit
MK1-E Gen. 3 is equipped with the Performance Line CX Gen4 with a torque of up to 85 Nm for a more powerful and hassle-free ride despite its compact size.
Whether you are cruising around the city or exploring new trails, this motor unit provides effortless acceleration and a sporty riding style for up to 25 km/h.

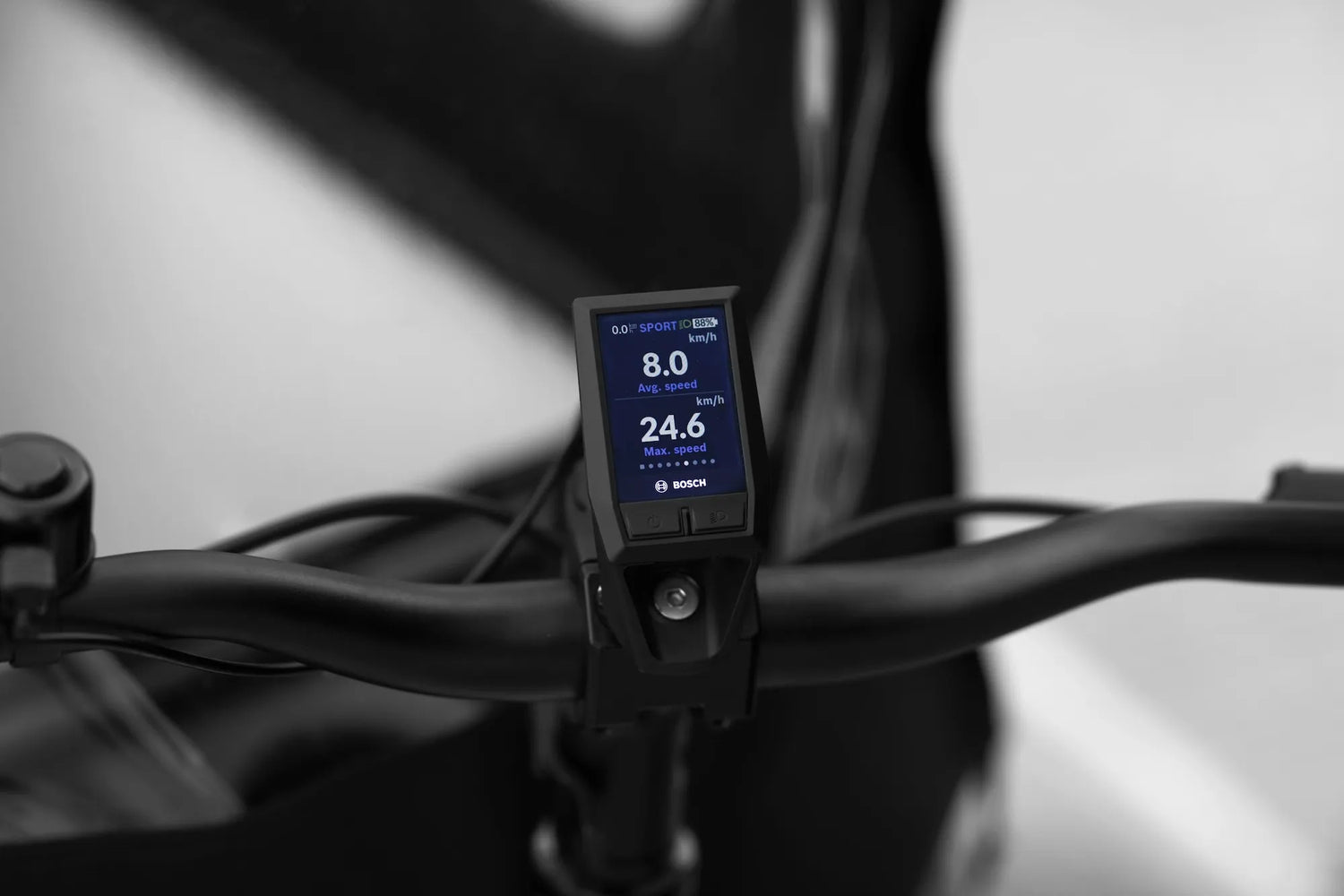

Kiox Display
This small display has everything. Connect it to your phone via Bluetooth and use it to navigate the trails or plan or discover new routes in the Bosch eBike Connect app.
You can adjust the display to show a selection of ride data to suit your needs and transfer the data to the app so you can analyze your performance.

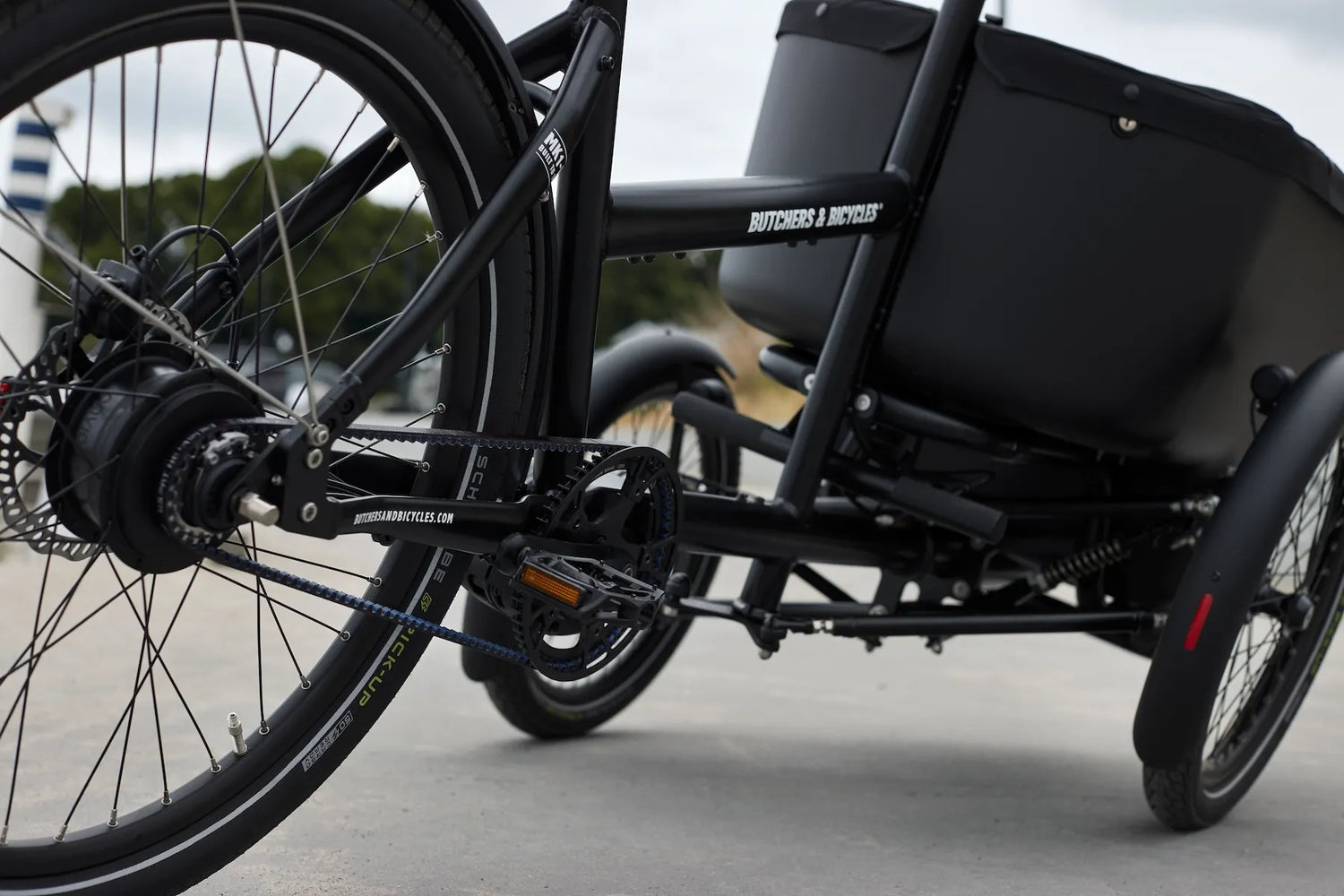

Gates Carbon Drive
MK1-E Gen. 3 is designed with a low maintenance and grease-free belt drive which is designed specifically for electric bikes.
The robust combination of metal and a high-strength belt embedded with carbon fibre cords is weather-resistant, smooth and reliable. You can rely on its durability for all your bike rides.
Schwalbe Cargo-dæk
Meet the tire designed exclusively for cargo bikes. Unmatched puncture resistance, rigid side walls for responsive handling and a grip that clings to the road.
With this tire, you no longer have to worry about the difficulties of the daily bike ride.

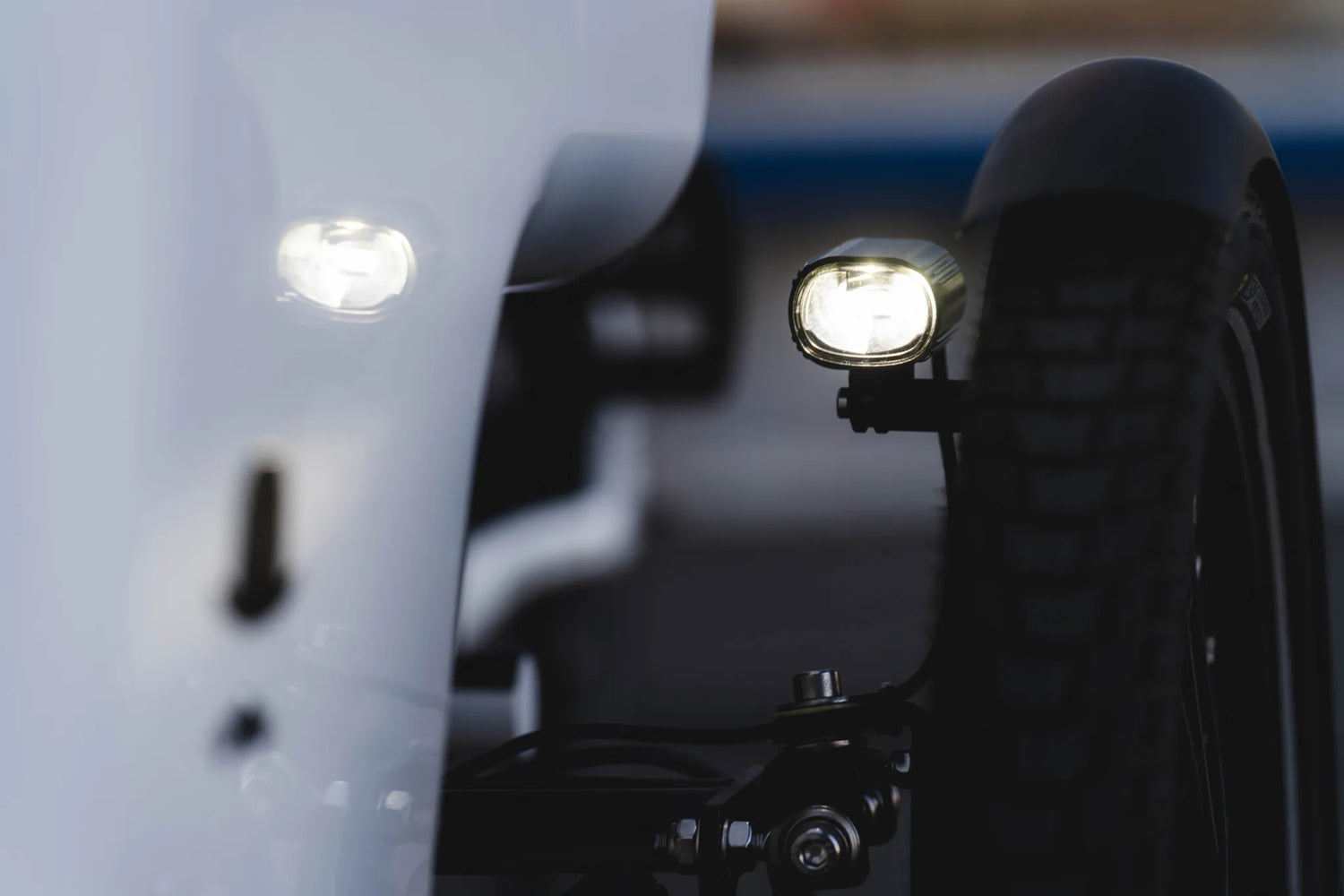

Lezyne og Trelock Lights
The powerful front light increases both brightness and strength. Notably, it has a unique power-saving daytime mode.
The rear light stands out with its automatic brake light function, which increases safety by warning others about sudden stops.
